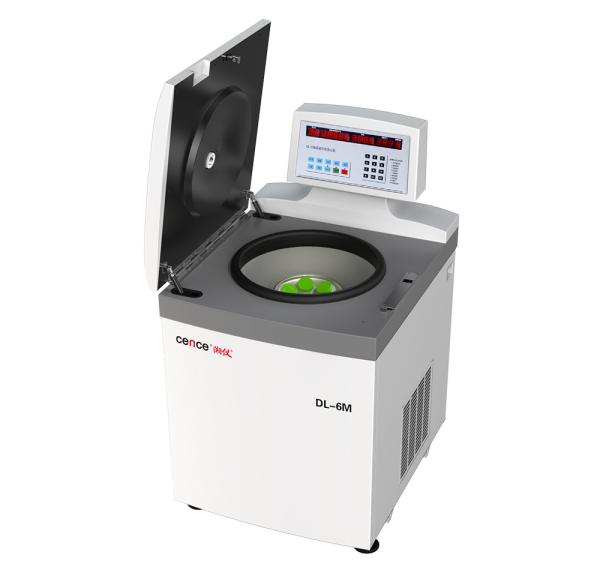

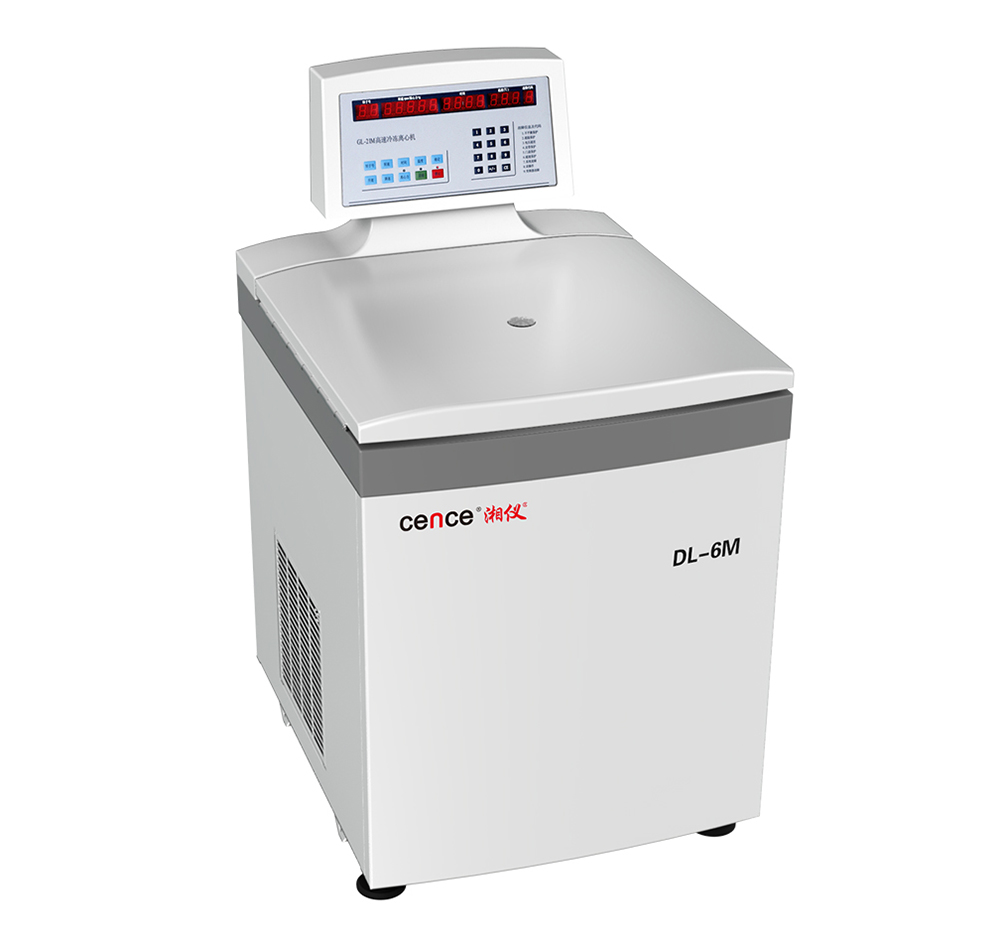

Cence DL-6M Large Capacity Low Speed Refrigerated Centrifuge
DL-6M large capacity low-speed refrigerated centrifuge is a classic model developed by Xiangyi/Cence ,which is very popular in the market.
With swing rotor 6x1000ml(round bucket) and 6x1000ml(oval bucket) , it’s an ideal instrument for biopharmaceutical, biological products and blood bank.

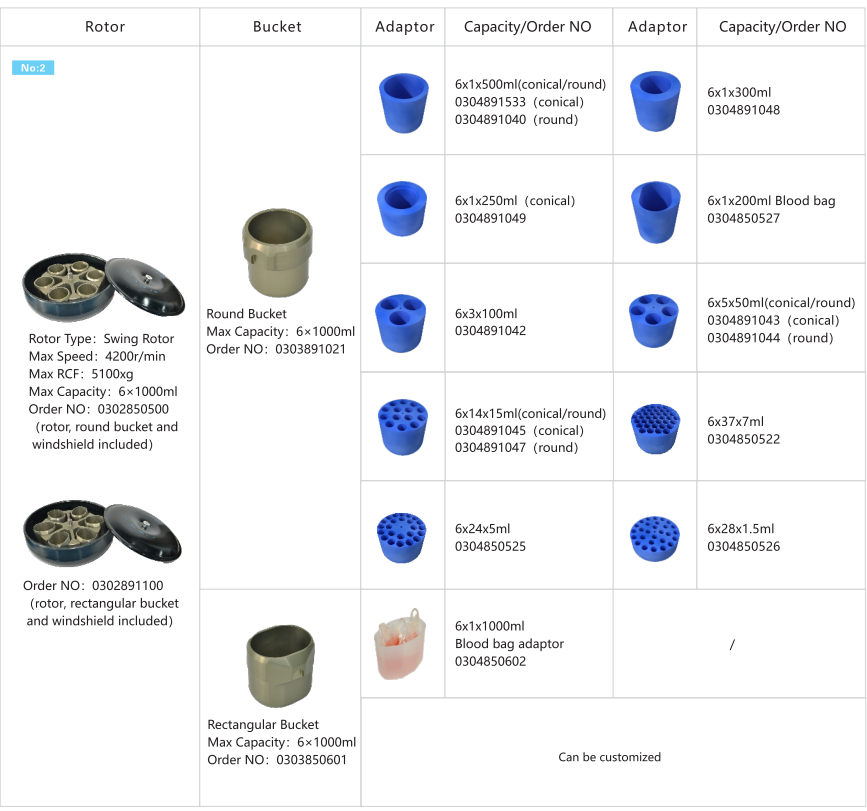

Rotor Parameters
Product Advantages
1. 9 acceleration and 10 deceleration option based on user’s requirement.
2. Touch panel, LED display
3. Environment-friendly refrigerant is adopted .The temperature setting range is - 20 ℃ ~ 40 ℃, and maximum speed temperature can be controlled below - 4 ℃.
4. Multiple protection against imbalance ,over-speed, over-temperature as well as door lid.
5. AC brush-less motor is more reliable.
6. Whole steel housing and three tiers containments for the safety of operator and instrument.
6. Low noise (less than 65dB) and low vibration.
7. The rotor adopt 7075-T6 aviation grade alloy aluminum ,hard oxidation, corrosion resistance. From raw material to finished products, each process is strictly controlled. The flaw detection report , tensile test report , chemical composition test report and processing test report can be provided.
Technical Parameters
| Model | | DL-6M |
| Max. Speed | Angle rotor | 6000rpm |
| Swing rotor | 4200rpm |
| Max.RCF | Angle rotor | 6680xg |
| Swing rotor | 5100xg |
| Max.capacity | Angle rotor | 6x500ml |
| Swing rotor | 6x1000ml |
| Speed accuracy | | ±10rpm |
| Time Range | | 1min~99h59min |
| Mode of Timing | | Timing after reaching the set speed |
| Acceleration
/deceleration curve | | 9 acceleration rates,10 deceleration rates(0 for free stop) |
| Temp Range | | -20℃ to 40℃ (1℃ adjustable) |
| Pre-cooling | | No |
| Temp Accuracy | | ±1℃ |
| Step Centrifugation | | Available (100 programs,each program can be divided into 5 steps. More programs can be set through external memory ) |
| Compressor Set | | Environment-friendly compressor set with R404a |
| Drive system | | Brushless motor with large torque |
| Noise | | <65dB(A) |
| Power supply | | AC220V +/-22V,50Hz 30A |
| Power consumption | | 3.0kW |
| Dimensions(WxDxH) | | 73x84x120cm |
| Packing size(WxDxH) | | 92x104x152cm |
| Net Weight | | 260kg |
